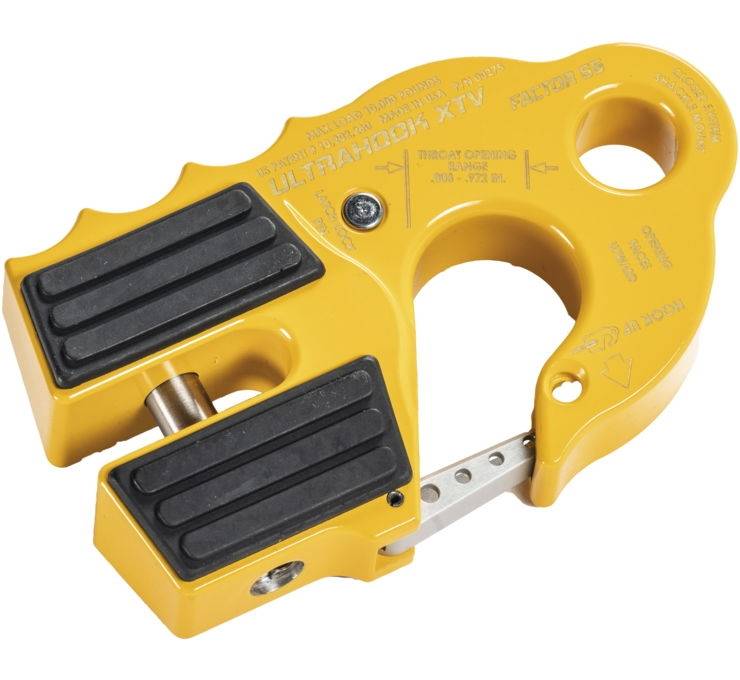

Warn UltraHook XTV Winch Shackle Mount - Yellow - 00275-03

00275-03

Description

The UltraHook XTV is the first powersports winch hook that can be stored neatly against your winchs fairlead protecting it from a metal to metal connection. Originally developed to meet the needs of off-road racers who wanted the speed of a hook and functionality of closed system winching, the low-profile UltraHook XTV features an industry-first closed-system shackle mount hole machined into the body of the hook. A latch pin, which is stored in the hooks body, can lock the safety latch securely into place for a true Closed Loop SystemT.
Easy-to-install shackle mount with a hole machined into the hooks body which accepts screw pins from common 1/2in. and 5/8in. shackles, and soft shackles up to 7/16in.
Safety latch with integrated latch lock pin allows for true closed system winching
Includes 7/16in. diameter 6AI-4V grade V titanium double-shear pin
EPDM rubber pads for fairlead protection, and a finger grip feature that promotes proper (Hook Up) orientation; also prevents rattling
Can be used with line diameters up to 5/16in.
Intended for use with winches 6,000 lbs. in capacity or less.

Product Series

Application List

Universal

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
  • Free Ground Shipping (1 - 5 Days)
