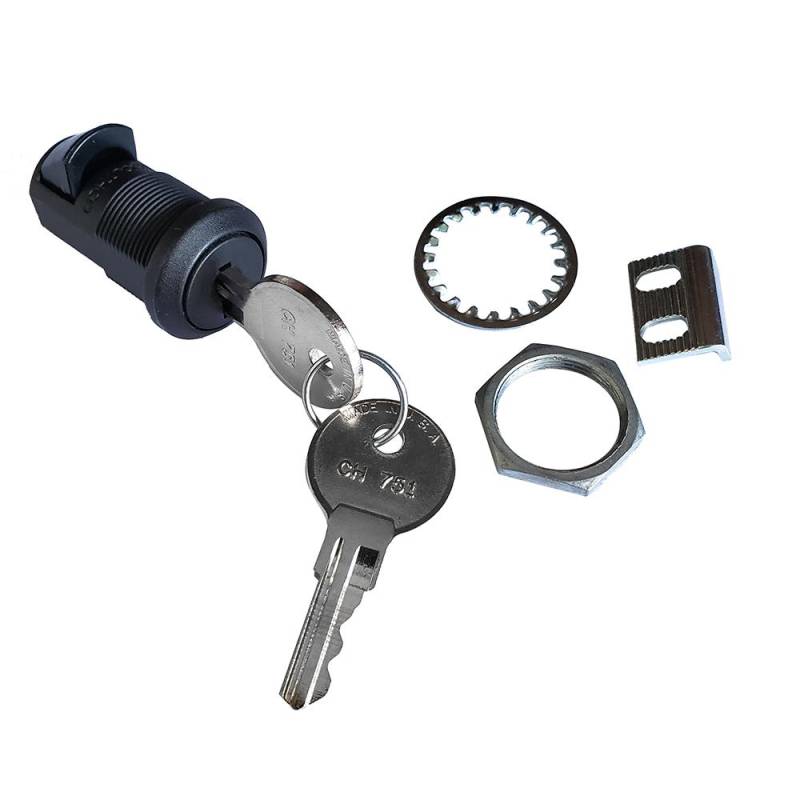

Southco Small Push-to-Close Latch - Locking

93-10-201-50

Description

Small Push-to-Close Latch - Locking

200 Series latches provide 20 mm (.812") grip with max. door thickness of 9.5 mm 3.72"

Multiple actuation choices for a common latching mechanism make it easy for these easy-to-use latches to meet your personal preferences or application requirements.

Features:

  • Maximum working load: Small: 330 N (75 lbf)
  • Operating temperature range: -18ºC (0ºF) to 65ºC (150ºF)
  • Flammability rating: UL94-HB
  • Installation Notes: Maximum tightening torque on mounting nut: 7.9 N m (70 in lbf)

Application List

Universal

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
