VDO 54MM Tube Type Fuel Sender - 1086MM Length

224-075

Description

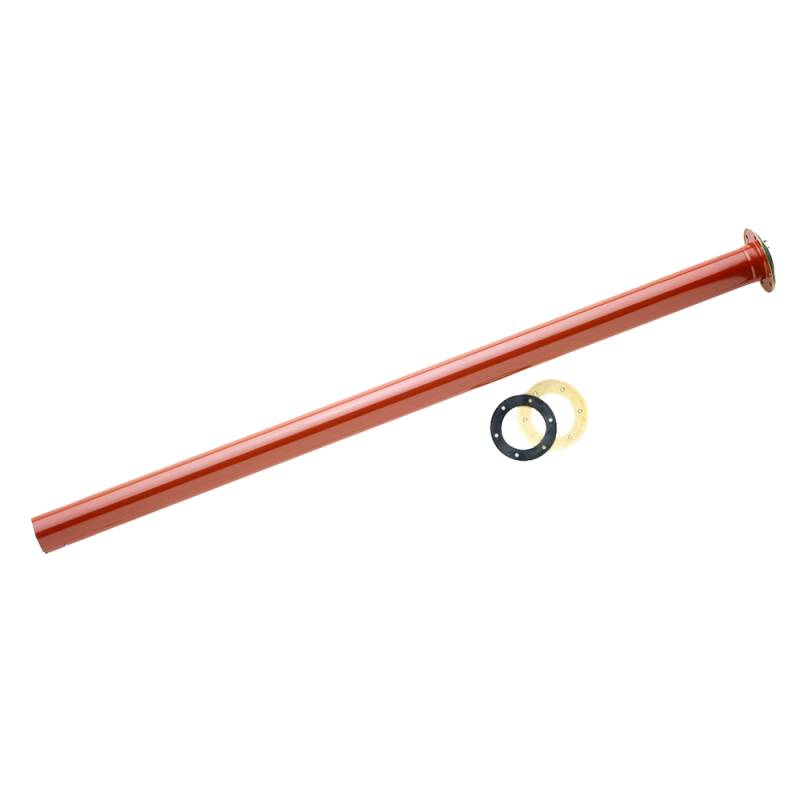

54MM Tube Type Fuel Sender - 1086MM Length

The VDO tube type fuel senders are robust and use the least amount of space within a tank, with no worries about float arm direction. The float is contained withi n the aluminum cylindrical housing, and it rides on two resistive wires that protect it from the 'extreme fuel sloshing' that occurs in many shallow, large or odd sized tanks.

These senders are ideal in applications where vehicle or equipment movement can cause severe fuel sloshing and premature sender failure. The float is captive within the tube and attached to resistive wires.  This limits the exposure to the sloshing substantially increasing sender life.

Features:

  • Connection - M5 Stud
  • Voltage -  6-24V
  • Mounting Diameter - 54mm
  • Mounting Length: 1086mm

*Sold as an Individual

WarningWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Application List

Universal

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
