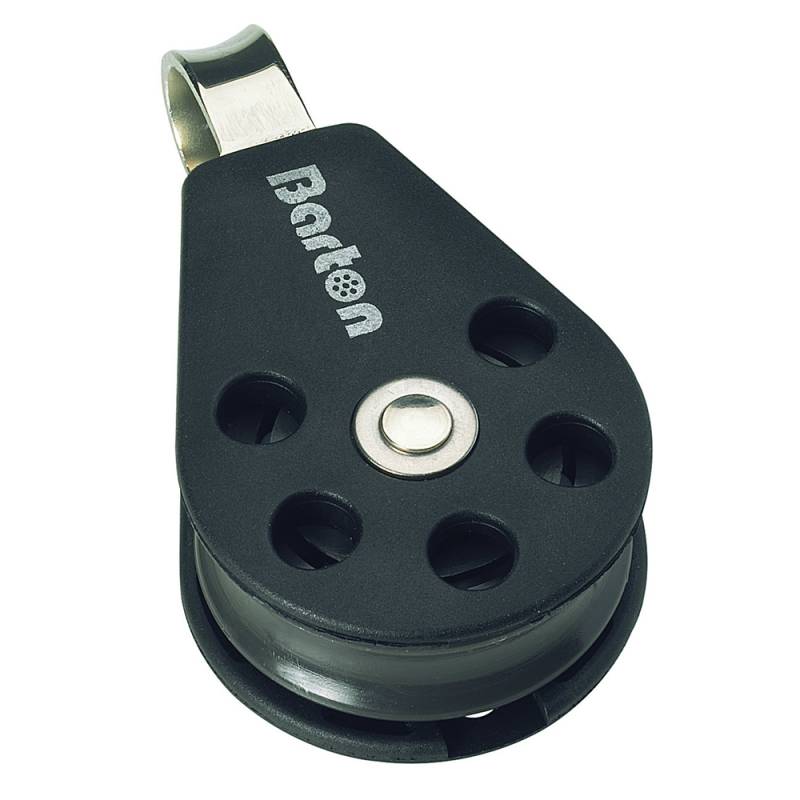

Barton Marine Series 0 Single Fixed Eye Ball Bearing Block - 20mm

N01 110

Description

Series 0 Single Fixed Eye Ball Bearing Block - 20mm

Ball Bearing Blocks

With our unique super-low friction ball race systems, featuring acetal sheaves and delrin ball bearings, running on a large diameter center boss. This allows us to fit more load-bearing balls, which ensure extremely low friction performance, even under high loads.

Specifications

  • Sheave size: 20mm x 8mm
  • Max rope diameter: 5mm
  • Safe working load: 275kg / 606lbs
  • Breaking load: 550kg / 1210lbs
  • Length: 39.1mm
  • Weight: 13g

Application List

Universal

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H10.0000” x L4.0000”
