Comrod AV2458P8 8' WiFi Dual Band Antenna 2.4 & 5 GHz

AV2458P8 8' Dual Band WiFi Antenna 2.4 & 5 GHz (cable sold separately)

P Series Wi-Fi Antennas have a N connector at the base and cable is center-fed.

The AV2458P8 is a dual-band omni-directional antenna for WLAN applications. The radiating element is located high in the whip to ensure it is clear of obstacles. It is a high quality antenna with a durable construction and a beautiful finish for installation on all kind of vessels.

Electrical Specifications:

• Dual Band Frequency Range: 2.4 - 2.5 GHz / 4.9 - 5.8 GHz
• VSWR: 1.7 nominal (2.2 maximum)
• Nominal Impedance: 50 ohm
• Power Rating: 5W
• Gain: 2.4 - 2.5 GHz 3 dBi nominal / 4.9 - 5.8 GHz 1 dBi nominal
• Polarization: Vertical
• Connector: N female

Mechanical Specifications:

• Design: Dipole design. Radiating elements completely enclosed in polyurethane foam within a fiberglass tube

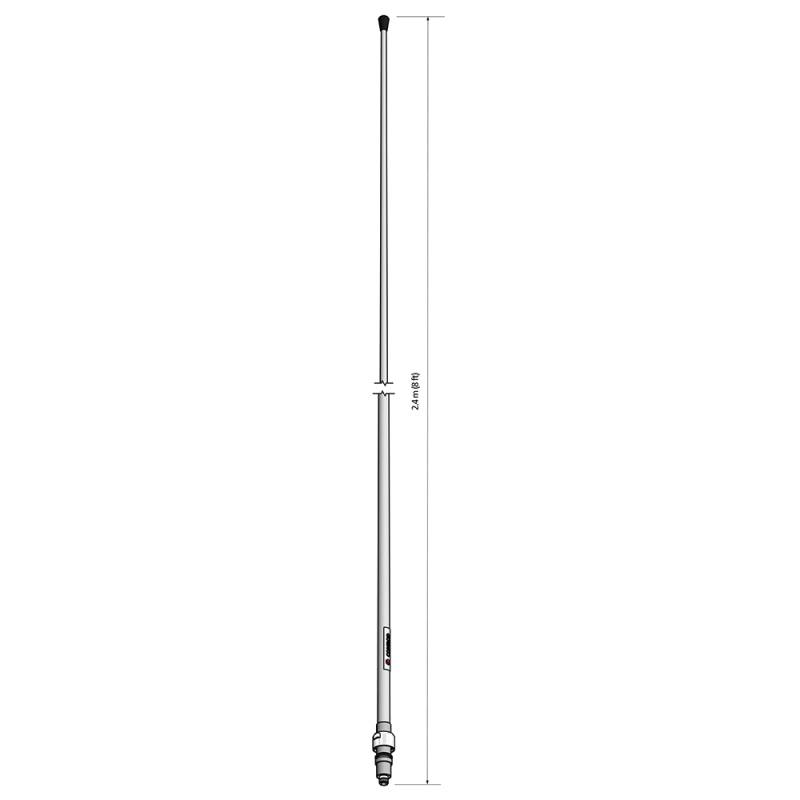

• Height: 8' (2.4M)
• Weight: 0.9 kg
• Wind Rating: 55 m/s = 125 mph
• Finish: Polyurethane lacquer, white
• Temperature Range: -40°C, +50°C;+ -28°F, +122°F
• Includes P Adapter to allow for cable side feed

MFG recommends low loss cable such as LMR-400 for WiFi.
