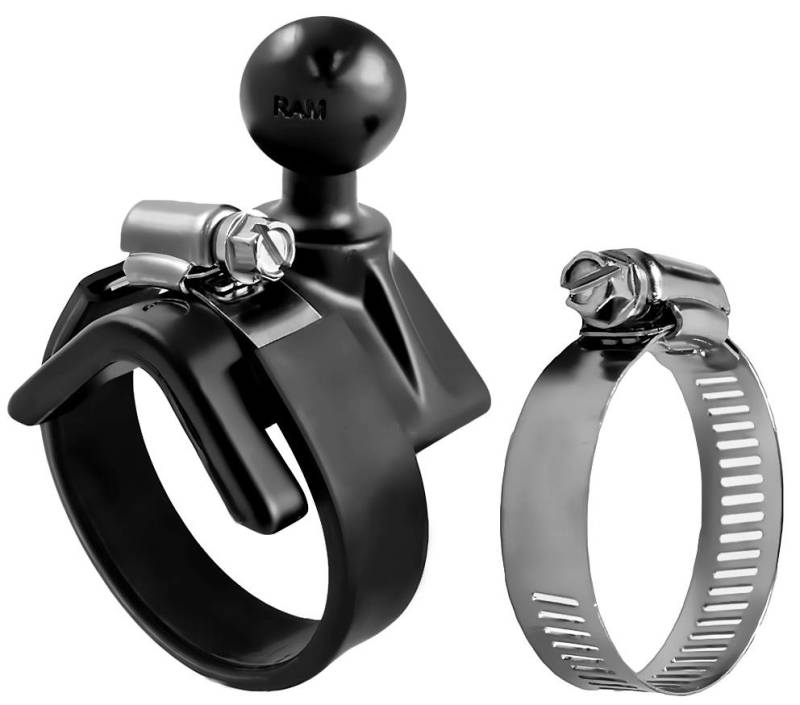

The RAM-B-108B consists of a 1in. diameter rubber ball connected at a right angle to a v-shaped base. The RAM-B-108B accommodates rails from 1.0in. to a maximum of 2.1in. diameter. To mount the RAM-B-108B base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. The RAM-B-108B is an alternative mounting base for Beechcraft airplanes with a throw over yoke.
Included in Kit:
(1) QTY 6in. long metal strap
(1) QTY 8in. long metal strap
(1) QTY 5.5in. rubber strip that supports the metal straps to avoiding scratching or marking of the rail
