Professional diagnostic tool for Harley-Davidson & Buell workshops and tuning centers
Parallel diagnostics is designed for measuring input and output signals from the electronic fuel injection module (EFI) and other modules
Measurements can also be made on running engines

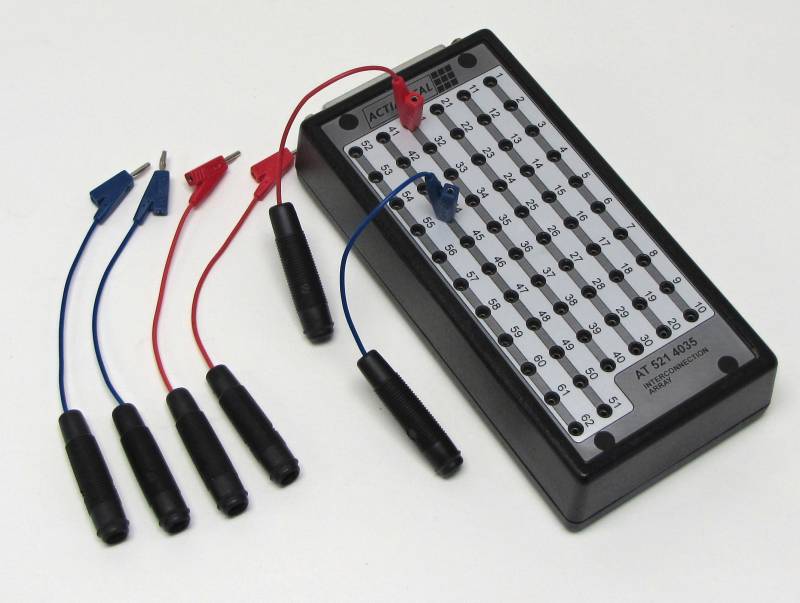

The system consists of a set of adapter cables and a breakout box
The breakout box is inserted between the EFI module and the motorcycles wiring harness so that the system continues to function as normal. Monitoring points for all connector pins of the EFI module are clearly arranged on the breakout box. It is possible to measure signals and waveforms from all systems and actuators
Disconnecting the ECU from the breakout box allows quick and reliable check of the integrity of the wiring harness in respect to continuity, and leakage currents
