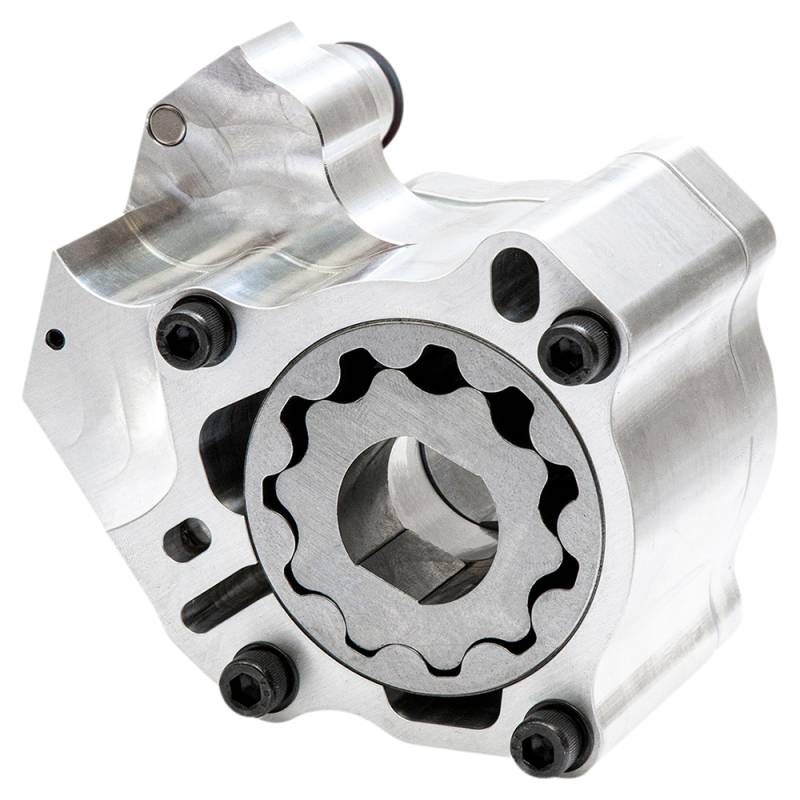

Feuling High Volume HP+ Oil Pump - 7018

Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
Eliminate common pressure and scavenge issues associated with the factory oiling system
Precision machined pressure relief valve and bore
Each oil pump is bench tested, the relief valve is seated and sealed to a minimum of 30 psi with full pop off at 55-60 psi
Requires use of the Fueling High Flow camplate, the combo increases oil flow in and out of the engine with corrected tolerances, oil passages and larger geroter gears
Reduces engine and oil temperatures, increase oil pressure volume and scavenge volume on the return side to reduce build up of oil in the crankcase
High flow 2.250in. Chrome Moly gerotor gears
Increased and optimized passages, port holes and galleys requiring them to be matched up to a Fueling High Flow camplate PART #0932-0192
42% more scavenge volume with matched passages, port sizing and holes to the engine case
68% more oil volume to the crankshaft and connecting rod bearing
Magnets to help protect gears and pressure relief valve
Testing shows increased HP and torque to the rear wheel
M-Eight Twin-Cooled motors has 30% more pressure gear volume over stock and 53% more scavenge gear volume over stock
M-Eight oil-cooled motors has 27% more pressure and scavenge gear volume over stock
Billet 6061 aluminum with natural finish
Increases oil pressure and scavenge volume
Cooler oil and engine temperatures
Made in the U.S.A.
NOTE: Must be matched to a Feuling High Flow camplate PART #0932-0192.
